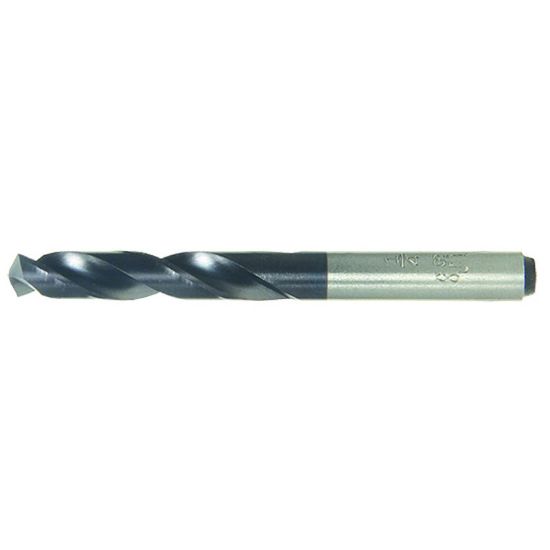

VIKING 37193 13/64 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37193
Delivery date: 3-5 days
$5.63

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 6
Coating TiN
Shipping State Minnesota
Application Drilling
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Dia Min 0.2031 5.16MM - 13/64
Machine Side Connection Size 0.2031 5.16MM
Shank/Pilot Dia 0.2031 5.16MM - 13/64
Flute Length 1.1880 30.18MM
Included Angle 135°
Tool Material Cobalt
Overall Len 2.2500 57.15MM
Cutter Dia 0.2031 5.16MM - 13/64
Flutes/Inserts 2
Drill Length Type Screw
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
