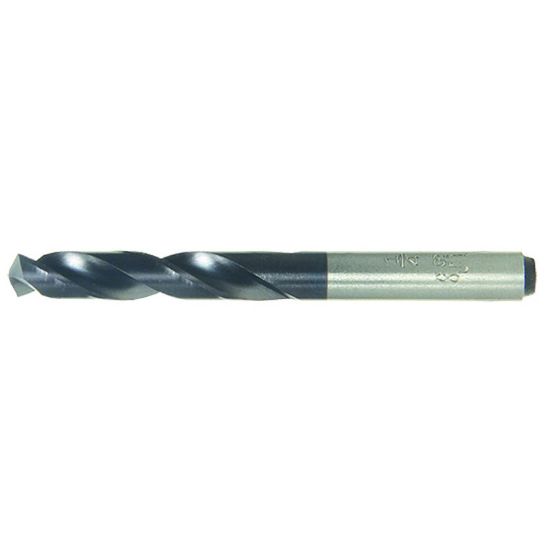

VIKING 37183 3/16 Cobalt Drill Screw Machine Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK37183
Delivery date: 3-5 days
$4.26

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Made In USA Yes
Shipping State Minnesota
Package Size 6
Dimensional Specifications
Tool Material Cobalt
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.1875 55.56MM
Flute Length 1.1250 28.58MM
Drill Length Type Screw
Cut Dia Min 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Machine Side Connection Size 0.1875 4.76MM
Included Angle 135°
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side Connection Type Cylindrical
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
