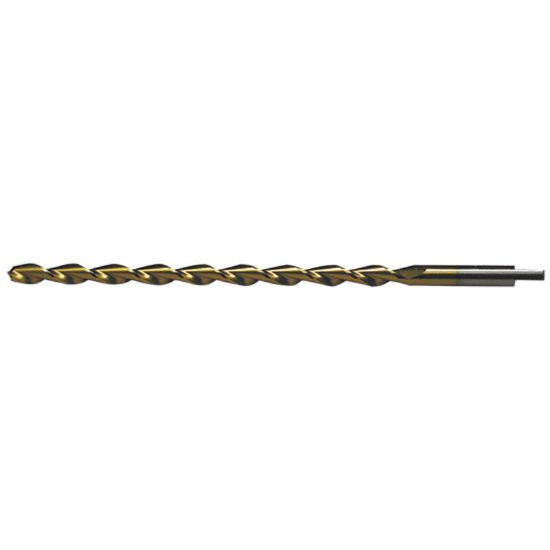

VIKING 34780 13/32 HSS Drill Taper Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK34780
Delivery date: 3-5 days
$21.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Made In USA Yes
Application Drilling
Shipping State Minnesota
Dimensional Specifications
Overall Len 7.0000 177.80MM
Flutes/Inserts 2
Machine Side Connection Size 1.0313 26.20MM
Flute Length 5.6250 142.88MM
Drill Length Type Taper
Cutter Dia 0.4062 10.32MM - 13/32
Tool Material High Speed Steel
Included Angle 135°
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.0313 26.20MM - 1-1/32
Cut Rating <25HRC Steel, Grey Iron
Cut Dia Min 0.4063 10.32MM - 13/32
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
