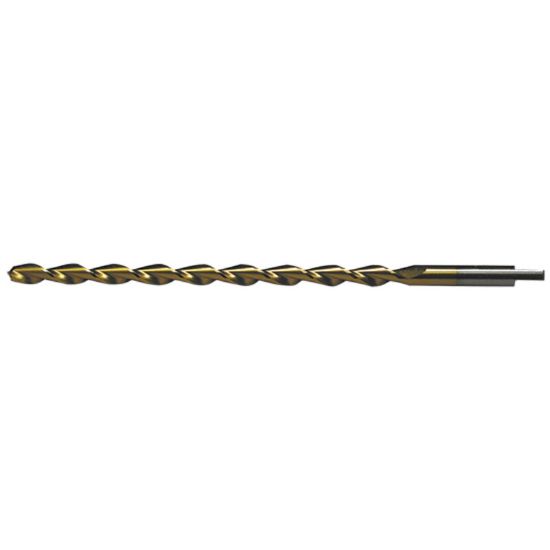

VIKING 34750 23/64 HSS Drill Taper Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK34750
Delivery date: 3-5 days
$18.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Coating TiN
Shipping State Minnesota
Application Drilling
Package Size 3
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Size 0.3594 9.13MM
Included Angle 135°
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Cut Dia Min 0.3594 9.13MM - 23/64
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Cylindrical
Flute Length 5.3750 136.53MM
Cut Rating <25HRC Steel, Grey Iron
Drill Length Type Taper
Tool Material High Speed Steel
Overall Len 6.7500 171.45MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
