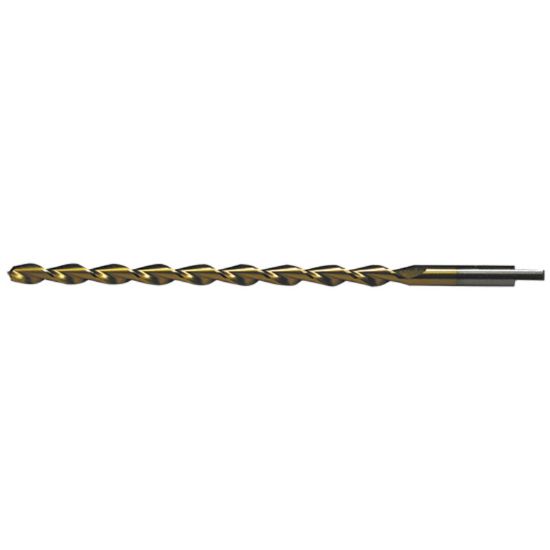

VIKING 34710 19/64 HSS Drill Taper Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK34710
Delivery date: 3-5 days
$13.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Coating TiN
Application Drilling
Package Size 3
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.2969 7.54MM - 19/64
Shank/Pilot Dia 0.2969 7.54MM - 19/64
Included Angle 135°
Drill Length Type Taper
Machine Side Connection Type Cylindrical
Flute Length 5.1250 130.18MM
Cut Rating <25HRC Steel, Grey Iron
Machine Side Connection Size 0.2969 7.54MM
Cutter Dia 0.2969 7.54MM - 19/64
Tool Material High Speed Steel
Flutes/Inserts 2
Overall Len 6.3750 161.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
