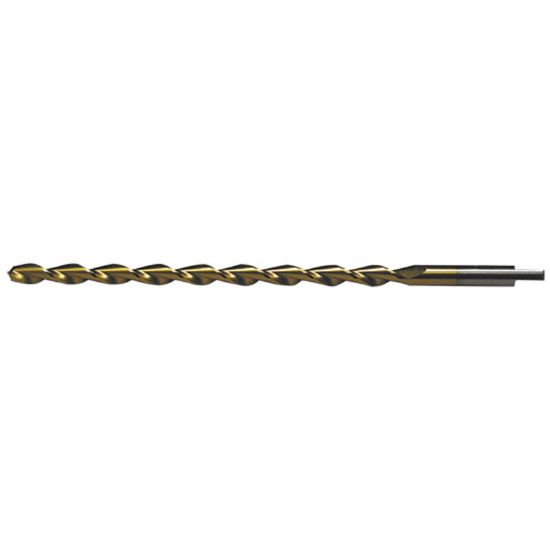

VIKING 34600 1/8 HSS Drill Taper Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK34600
Delivery date: 3-5 days
$6.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Coating TiN
Made In USA Yes
Shipping State Minnesota
Package Size 6
Dimensional Specifications
Tool Material High Speed Steel
Machine Side Connection Size 0.1250 3.18MM
Overall Len 5.1250 130.18MM
Flutes/Inserts 2
Cut Rating <25HRC Steel, Grey Iron
Cut Dia Min 0.1250 3.18MM - 1/8
Cutter Dia 0.1250 3.18MM - 1/8
Flute Length 3.3750 85.73MM
Drill Length Type Taper
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Included Angle 135°
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
