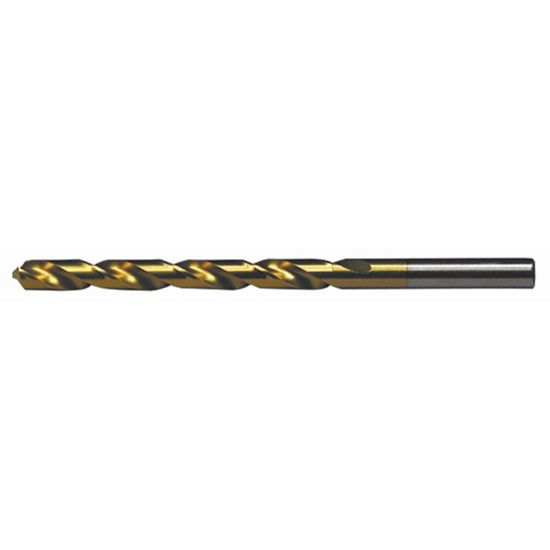

VIKING 32580 41/64 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK32580
Delivery date: 3-5 days
$34.86

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Package Size 1
Application Drilling
Coating TiN
Dimensional Specifications
Flute Length 5.1880 131.78MM
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Dia Min 0.6406 16.27MM - 41/64
Machine Side Connection Size 0.6406 16.27MM
Shank/Pilot Dia 0.6406 16.27MM - 41/64
Overall Len 7.1250 180.98MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutter Dia 0.6406 16.27MM - 41/64
Drill Length Type Jobber
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
