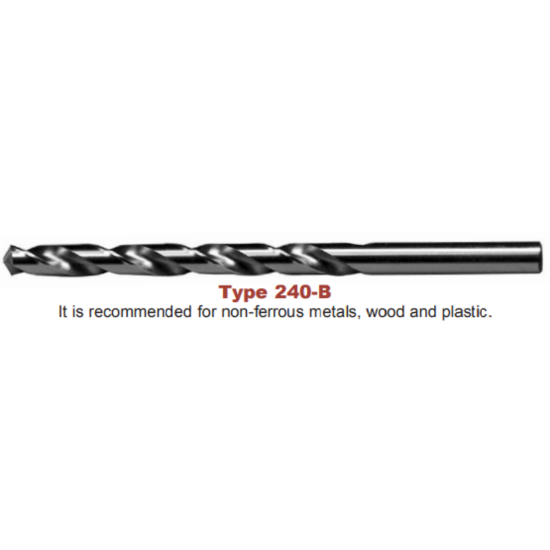

VIKING 3220 #4 HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK03220
Delivery date: 3-5 days
$1.66

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 12
Application Drilling
Shipping State Minnesota
Dimensional Specifications
Drill Length Type Jobber
Shank/Pilot Dia 0.2090 5.31MM - #4
Flute Length 2.5000 63.50MM
Cutter Dia 0.2090 5.31MM - #4
Machine Side Connection Size 0.2090 5.31MM
Machine Side Connection Type Cylindrical
Overall Len 3.7500 95.25MM
Included Angle 118°
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.2090 5.30MM - #4
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
