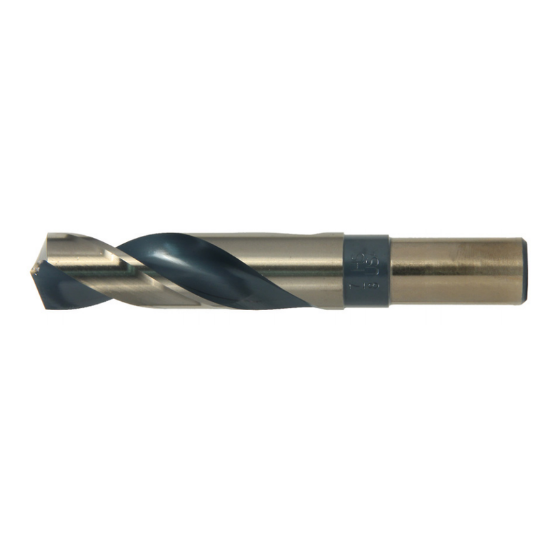

VIKING 29941 1-1/4 HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29941
Delivery date: 3-5 days
$71.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Package Size 1
Application Drilling
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Machine Side Connection Size 0.7500 19.05MM
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cut Dia Min 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Included Angle 135°
Overall Len 3.5000 88.90MM
Flute Length 5.8750 149.23MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
