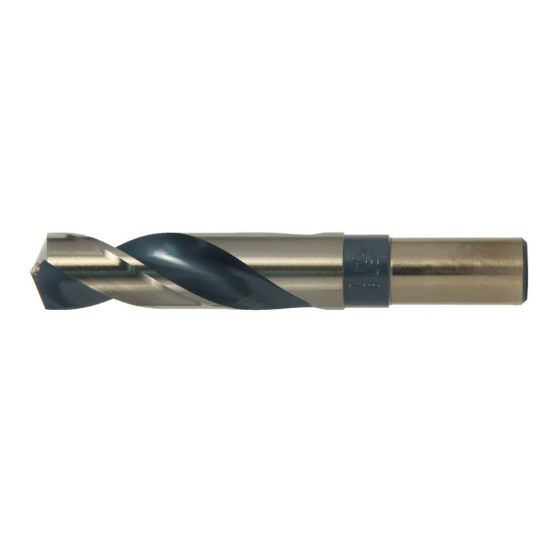

VIKING 29781 7/8 HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29781
Delivery date: 3-5 days
$35.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling
Shipping State Minnesota
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Tool Material High Speed Steel
Flute Length 5.5000 139.70MM
Included Angle 135°
Cutter Dia 0.8750 22.23MM - 7/8
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel
Cut Dia Min 0.8750 22.23MM - 7/8
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
