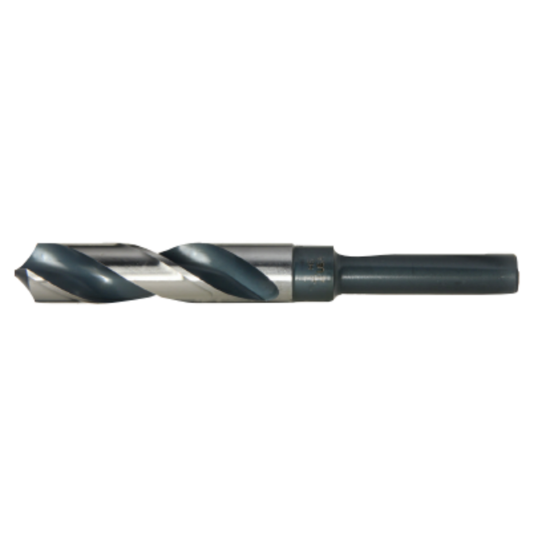

VIKING 29450 1-1/16 HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29450
Delivery date: 3-5 days
$49.34

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Drilling
Shipping State Minnesota
Dimensional Specifications
Machine Side Connection Type Cylindrical
Included Angle 118°
Cut Rating <25HRC Steel, Stainless Steel
Cutter Dia 1.0625 26.99MM - 1-1/16
Overall Len 6.0000 152.40MM
Machine Side Connection Size 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Dia Min 1.0625 26.99MM - 1-1/16
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
