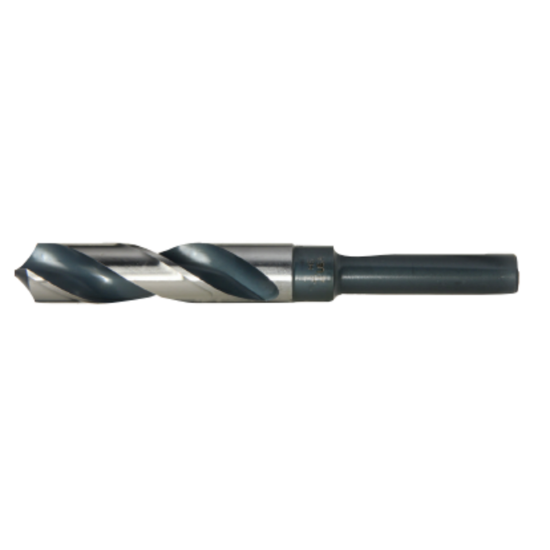

VIKING 29440 1" HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29440
Delivery date: 3-5 days
$42.06

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Rating <25HRC Steel, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
Overall Len 6.0000 152.40MM
Machine Side Connection Type Cylindrical
Included Angle 118°
Cut Dia Min 1.0000 25.40MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
