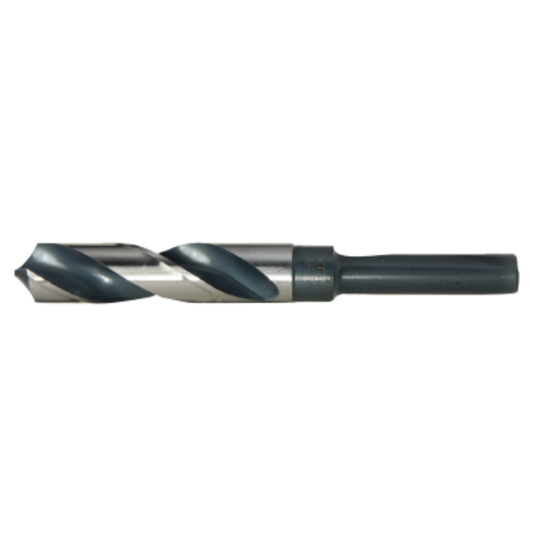

VIKING 29380 29/32 HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29380
Delivery date: 3-5 days
$33.73

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Application Drilling
Package Size 1
Dimensional Specifications
Included Angle 118°
Cutter Dia 0.9063 23.02MM - 29/32
Overall Len 6.0000 152.40MM
Cut Dia Min 0.9062 23.02MM - 29/32
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Cut Rating <25HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
