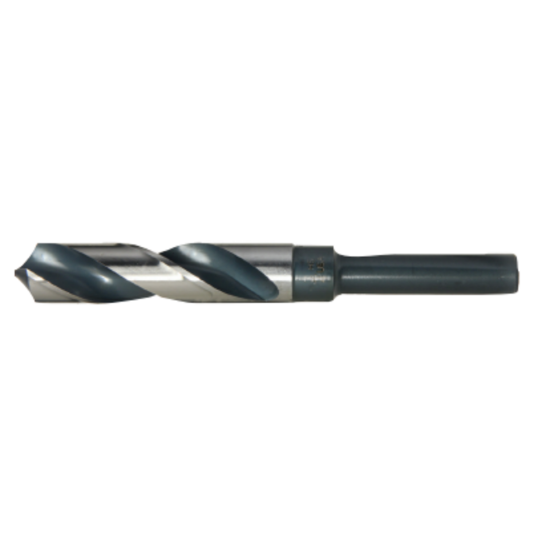

VIKING 29360 7/8" HSS Drill Silver&Deming Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29360
Delivery date: 3-5 days
$32.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Application Drilling
Shipping State Minnesota
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.5000 12.70MM
Cut Rating <25HRC Steel, Stainless Steel
Cutter Dia 0.8750 22.23MM - 7/8
Cut Dia Min 0.8750 22.23MM - 7/8
Flutes/Inserts 2
Overall Len 6.0000 152.40MM
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Included Angle 118°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
