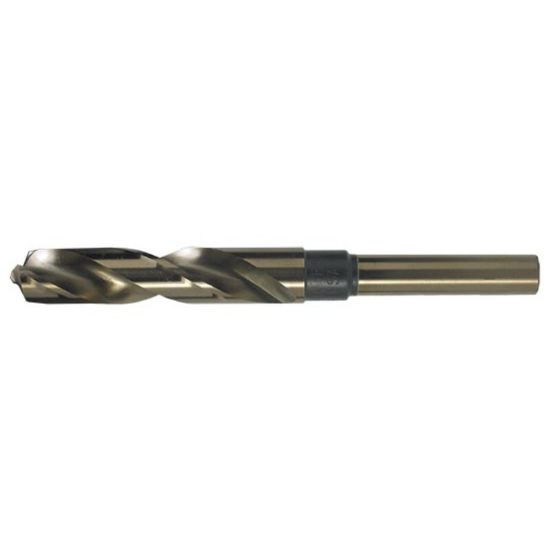

VIKING 29211 41/64 Cobalt Drill Silver&Deming Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29211
Delivery date: 3-5 days
$36.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Shipping State Minnesota
Application Drilling
Coating TiN
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Material Cobalt
Machine Side Connection Type Cylindrical
Cut Rating <25HRC Steel, Stainless Steel
Cut Dia Min 0.6406 16.27MM - 41/64
Cutter Dia 0.6406 16.27MM - 41/64
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Included Angle 135°
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
Contractor Yes
