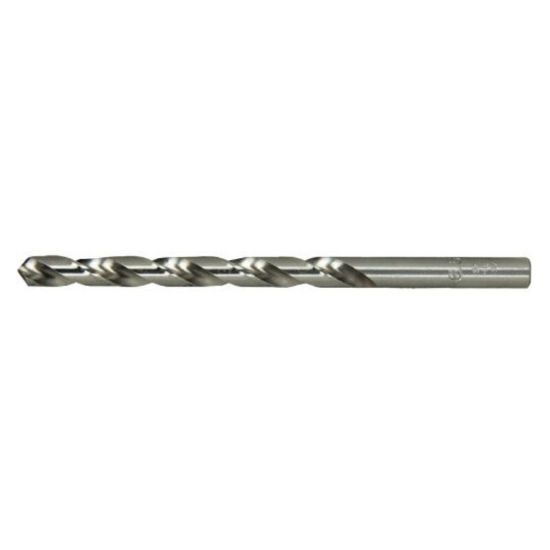

VIKING 29080 1.30MM HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK29080
Delivery date: 3-5 days
$0.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling
Shipping State Minnesota
Package Size 10
Dimensional Specifications
Cut Dia Min 0.0512 1.30MM
Shank/Pilot Dia 0.0512 1.30MM
Tool Material High Speed Steel
Cutter Dia 0.0512 1.30MM
Machine Side Connection Type Cylindrical
Included Angle 118°
Drill Length Type Jobber
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.0512 1.30MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
