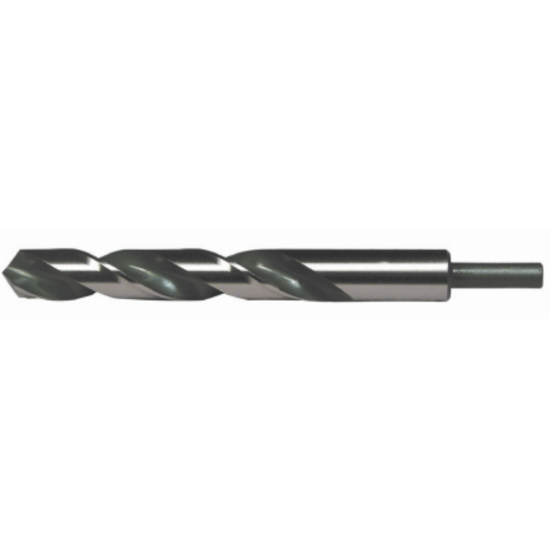

VIKING 28920 29/64 HSS Drill Stub/Jobber Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK28920
Delivery date: 3-5 days
$12.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Drilling
Package Size 6
Shipping State Minnesota
Dimensional Specifications
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Flute Length 3.0310 76.99MM
Drill Length Type Stub / Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Overall Len 4.7813 121.45MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4531 11.51MM - 29/64
Machine Side Connection Size 0.2500 6.35MM
Included Angle 118°
Cutter Dia 0.4531 11.51MM - 29/64
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
