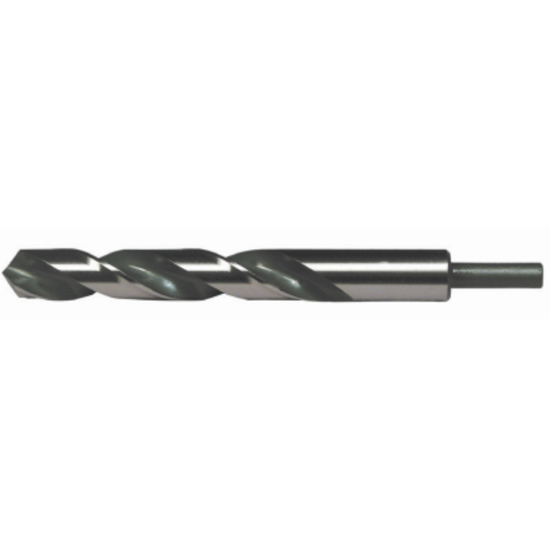

VIKING 28850 11/32 HSS Drill Stub/Jobber Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK28850
Delivery date: 3-5 days
$6.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA Yes
Shipping State Minnesota
Package Size 6
Dimensional Specifications
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Overall Len 4.0313 102.40MM
Drill Length Type Stub / Jobber
Cutter Dia 0.3438 8.73MM - 11/32
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Included Angle 118°
Cut Dia Min 0.3438 8.73MM - 11/32
Flute Length 2.3440 59.54MM
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
