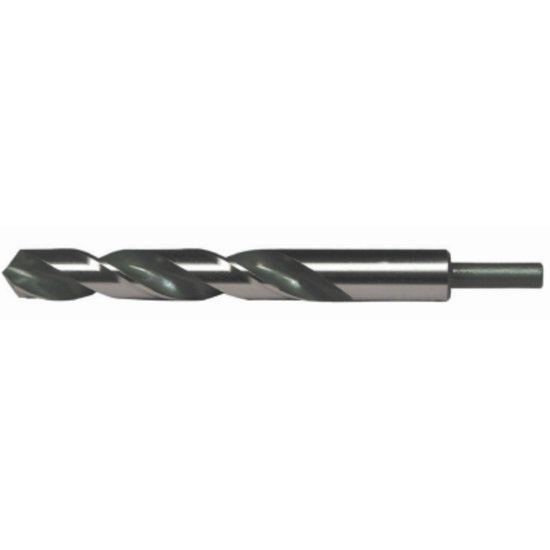

VIKING 28840 21/64 HSS Drill Stub/Jobber Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK28840
Delivery date: 3-5 days
$5.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Package Size 6
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.3281 8.33MM - 21/64
Drill Length Type Stub / Jobber
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Machine Side Connection Size 0.2500 6.35MM
Included Angle 118°
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flute Length 2.2810 57.94MM
Cutter Dia 0.3281 8.33MM - 21/64
Overall Len 4.0000 101.60MM
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
