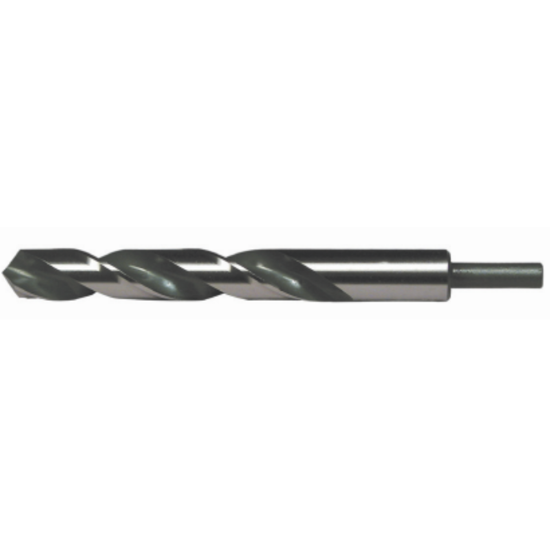

VIKING 28820 19/64 HSS Drill Stub/Jobber Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK28820
Delivery date: 3-5 days
$5.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 6
Application Drilling
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Included Angle 118°
Cutter Dia 0.2969 7.54MM - 19/64
Cut Dia Min 0.2969 7.54MM - 19/64
Tool Material High Speed Steel
Drill Length Type Stub / Jobber
Overall Len 3.7188 94.46MM
Flute Length 2.0630 52.40MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
