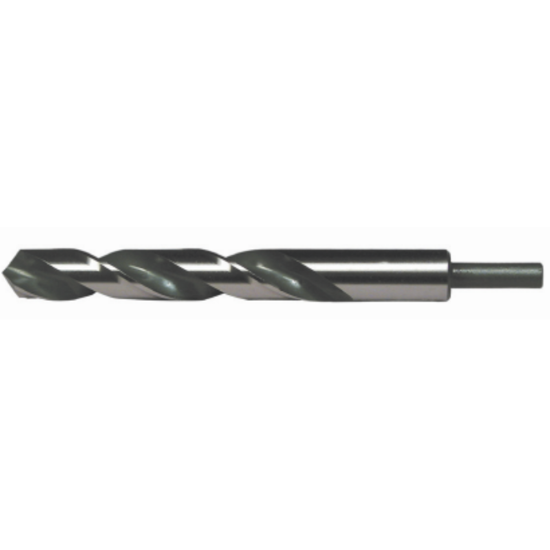

VIKING 28810 9/32 HSS Drill Stub/Jobber Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK28810
Delivery date: 3-5 days
$5.06

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 12
Shipping State Minnesota
Application Drilling
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.2812 7.14MM - 9/32
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Rating <25HRC Steel, Aluminium, Grey Iron
Cut Dia Min 0.2810 7.14MM - 9/32 - K
Flute Length 1.9690 50.01MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Included Angle 118°
Tool Material High Speed Steel
Overall Len 3.5938 91.28MM
Drill Length Type Stub / Jobber
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
