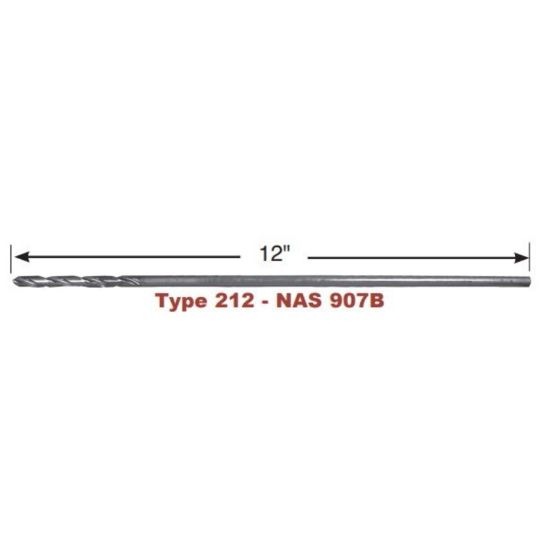

VIKING 2740 7/64 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK02740
Delivery date: 3-5 days
$8.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Package Size 1
Application Drilling
Dimensional Specifications
Cut Dia Min 0.1094 2.78MM - 7/64
Machine Side Connection Type Cylindrical
Cutter Dia 0.1094 2.78MM - 7/64
Overall Len 12.0000 304.80MM
Cut Rating <25HRC Steel, Grey Iron
Machine Side Connection Size 0.1094 2.78MM
Shank/Pilot Dia 0.1094 2.78MM - 7/64
Flute Length 1.5000 38.10MM
Tool Material High Speed Steel
Flutes/Inserts 2
Included Angle 135°
Drill Length Type Aircraft
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
