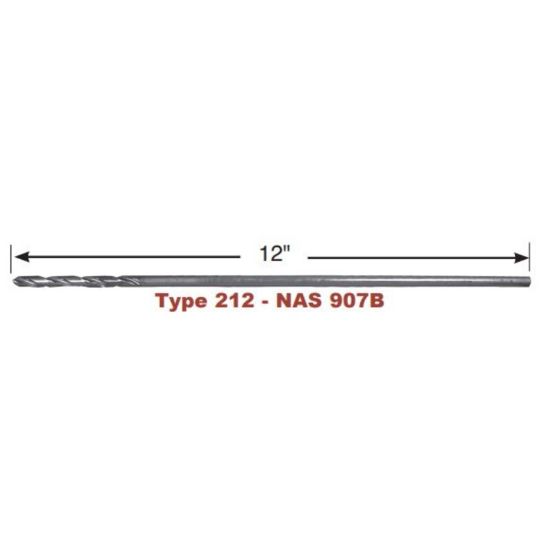

VIKING 2730 3/32 HSS Drill Aircraft Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK02730
Delivery date: 3-5 days
$11.06

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling
Made In USA Yes
Shipping State Minnesota
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 0.0938 2.38MM - 3/32
Included Angle 135°
Flute Length 1.2500 31.75MM
Cut Dia Min 0.0938 2.38MM - 3/32
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0938 2.38MM
Overall Len 12.0000 304.80MM
Shank/Pilot Dia 0.0938 2.38MM - 3/32
Drill Length Type Aircraft
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
