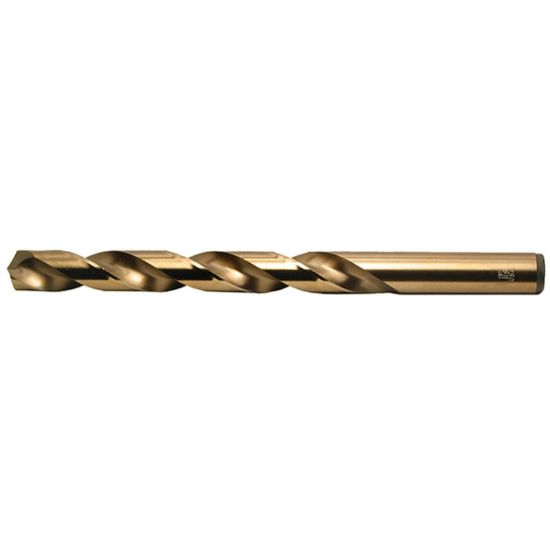

VIKING 26460 2.00MM Cobalt Drill Jobber Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK26460
Delivery date: 3-5 days
$1.26

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Coating TiN
Application Drilling
Made In USA Yes
Package Size 10
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 2.0079 51.00MM
Drill Length Type Jobber
Shank/Pilot Dia 0.0787 2.00MM
Included Angle 135°
Cutter Dia 0.0787 2.00MM
Tool Material Cobalt
Machine Side Connection Size 0.0787 2.00MM
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Cut Dia Min 0.0787 2.00MM
Flutes/Inserts 2
Flute Length 0.9840 24.99MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
