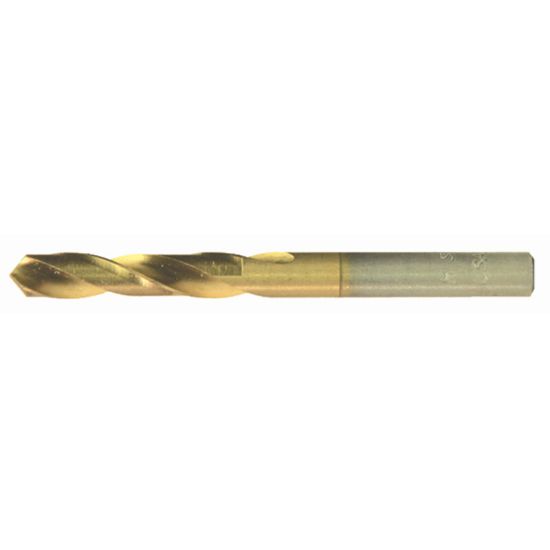

VIKING 24803 #17 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK24803
Delivery date: 3-5 days
$2.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Coating TiN
Shipping State Minnesota
Package Size 6
Application Drilling
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1730 4.39MM
Cut Rating <25HRC Steel
Flutes/Inserts 2
Cut Dia Min 0.1730 4.39MM - #17
Shank/Pilot Dia 0.1730 4.39MM - #17
Included Angle 118°
Tool Material High Speed Steel
Overall Len 2.1875 55.56MM
Flute Length 1.1250 28.58MM
Drill Length Type Screw
Cutter Dia 0.1730 4.39MM - #17
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
