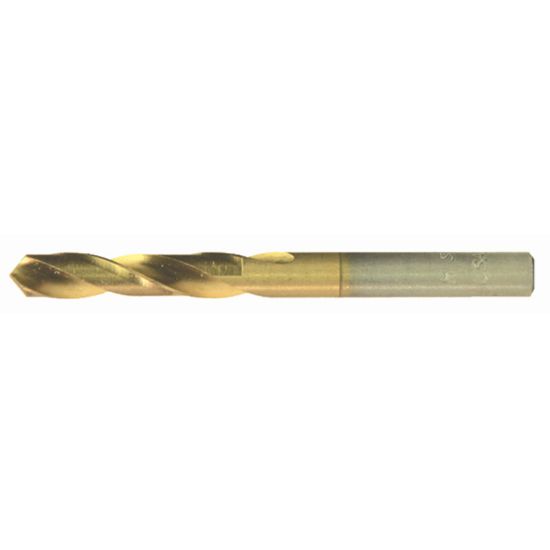

VIKING 24663 #3 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK24663
Delivery date: 3-5 days
$3.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Made In USA Yes
Application Drilling
Coating TiN
Package Size 6
Dimensional Specifications
Machine Side Connection Size 0.2130 5.41MM
Overall Len 2.3750 60.33MM
Included Angle 118°
Cutter Dia 0.2130 5.41MM - #3
Cut Dia Min 0.2130 5.41MM - #3
Cut Rating <25HRC Steel
Tool Material High Speed Steel
Flutes/Inserts 2
Drill Length Type Screw
Shank/Pilot Dia 0.2130 5.41MM - #3
Flute Length 1.2500 31.75MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
