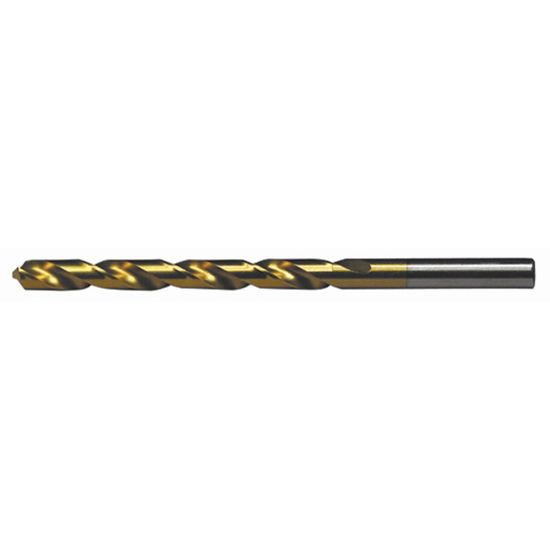

VIKING 22950 G HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK22950
Delivery date: 3-5 days
$6.41

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Package Size 6
Shipping State Minnesota
Made In USA Yes
Dimensional Specifications
Overall Len 4.1250 104.78MM
Drill Length Type Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Cut Dia Min 0.2610 6.63MM - G
Machine Side Connection Type Cylindrical
Cutter Dia 0.2610 6.63MM - G
Included Angle 118°
Shank/Pilot Dia 0.2610 6.63MM - G
Flute Length 2.8750 73.03MM
Machine Side Connection Size 0.2610 6.63MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
