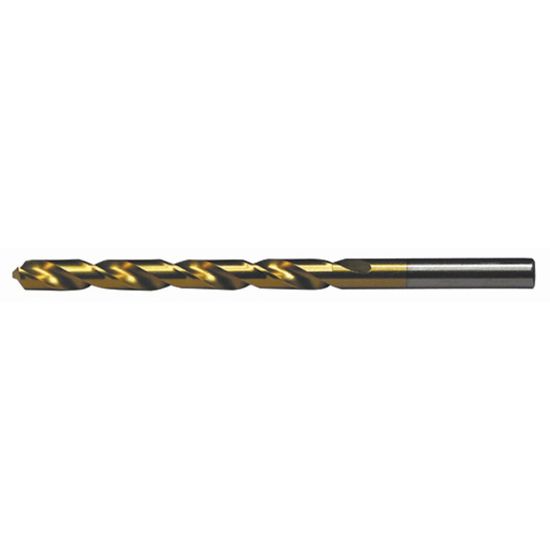

VIKING 22890 A HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK22890
Delivery date: 3-5 days
$4.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 6
Coating TiN
Application Drilling
Made In USA Yes
Dimensional Specifications
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Machine Side Connection Type Cylindrical
Included Angle 118°
Shank/Pilot Dia 0.2340 5.94MM - A
Drill Length Type Jobber
Tool Material High Speed Steel
Overall Len 3.8750 98.43MM
Cut Dia Min 0.2340 5.94MM - A
Flutes/Inserts 2
Cutter Dia 0.2340 5.94MM - A
Machine Side Connection Size 0.2340 5.94MM
Flute Length 2.6250 66.68MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
