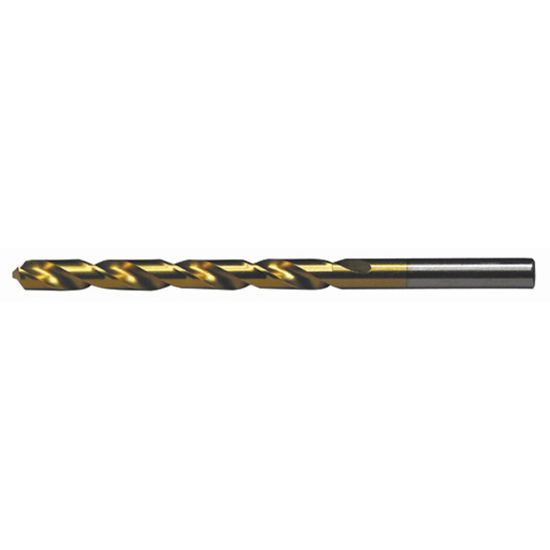

VIKING 22760 23/64 HSS Drill Jobbers Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK22760
Delivery date: 3-5 days
$8.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Coating TiN
Made In USA Yes
Package Size 3
Dimensional Specifications
Tool Material High Speed Steel
Machine Side Connection Size 0.3594 9.13MM
Overall Len 4.8750 123.83MM
Cut Dia Min 0.3594 9.13MM - 23/64
Flute Length 3.5000 88.90MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Cylindrical
Included Angle 118°
Drill Length Type Jobber
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
