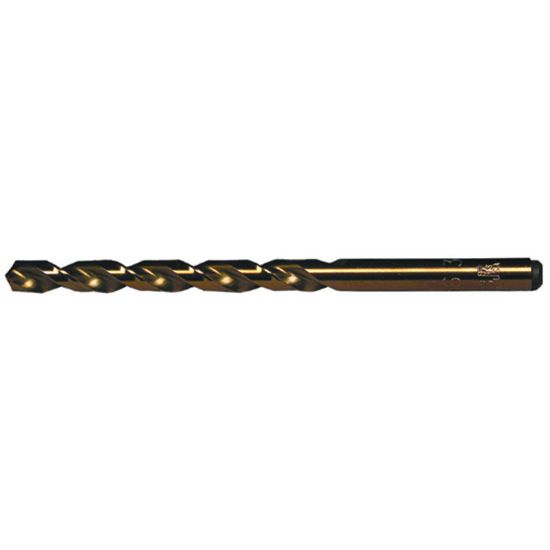

VIKING 223 1.32MM Cobalt Drill DIN Length Gold Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK00223
Delivery date: 3-5 days
$2.99

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert and reduces friction. Use it on cutting tools, punches, dies and injection mold components to improve tool life two to ten times, or more, over uncoated tools.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Minnesota
Package Size 10
Made In USA Yes
Coating TiN
Application Drilling
Dimensional Specifications
Drill Length Type Din
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0520 1.32MM
Overall Len 1.8898 48.00MM
Flutes/Inserts 2
Cut Rating <30HRC Steel, Aluminum, Stainless Steel
Flute Length 0.8660 22.00MM
Cutter Dia 0.0520 1.32MM - #55
Tool Material Cobalt
Cut Dia Min 0.0520 1.32MM - #55
Shank/Pilot Dia 0.0520 1.32MM - #55
Included Angle 135°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
