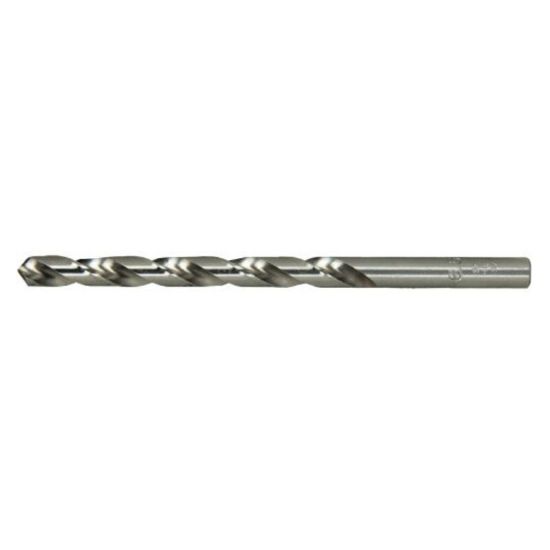

VIKING 21951 13.00MM HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK21951
Delivery date: 3-5 days
$6.90

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Minnesota
Application Drilling
Package Size 5
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Shank/Pilot Dia 0.5118 13.00MM
Included Angle 118°
Cut Dia Min 0.5118 13.00MM
Drill Length Type Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Cutter Dia 0.5118 13.00MM
Machine Side Connection Size 0.5118 13.00MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
