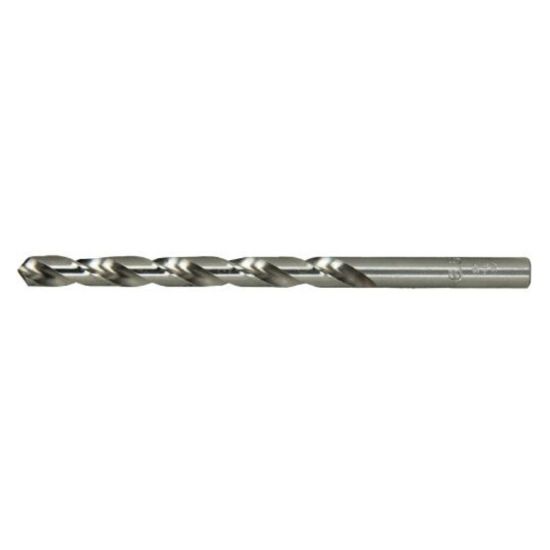

VIKING 17100 1.15MM HSS Drill Jobbers Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK17100
Delivery date: 3-5 days
$0.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Package Size 10
Made In USA Yes
Dimensional Specifications
Tool Material High Speed Steel
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.0453 1.15MM
Included Angle 118°
Cutter Dia 0.0453 1.15MM
Drill Length Type Jobber
Cut Dia Min 0.0453 1.15MM
Machine Side Connection Size 0.0453 1.15MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
