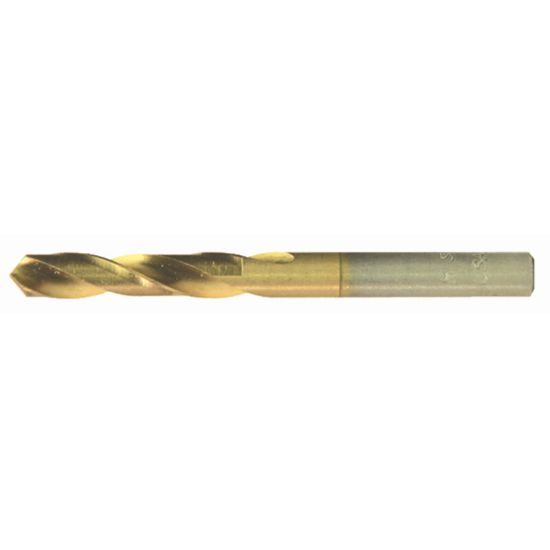

VIKING 1691 23/64 HSS Drill Screw Machine Length TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK01691
Delivery date: 3-5 days
$5.73

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Package Size 3
Shipping State Minnesota
Made In USA Yes
Coating TiN
Dimensional Specifications
Overall Len 3.0625 77.79MM
Tool Material High Speed Steel
Machine Side Connection Size 0.3594 9.13MM
Drill Length Type Screw
Cut Rating <25HRC Steel
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Included Angle 118°
Cutter Dia 0.3594 9.13MM - 23/64
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Flute Length 1.7500 44.45MM
Cut Dia Min 0.3594 9.13MM - 23/64
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
