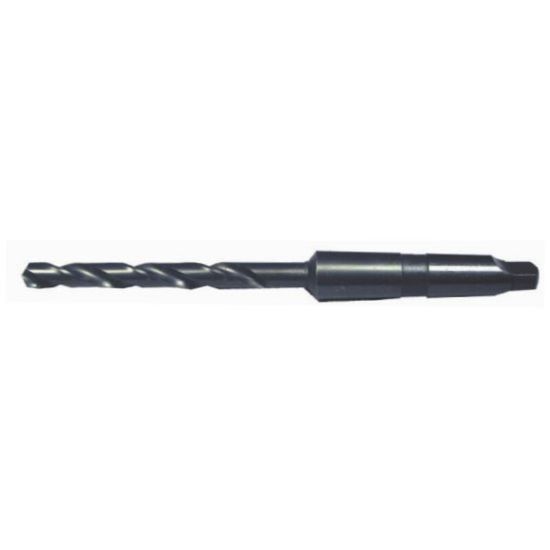

Viking 15620 1” HSS Drill Taper Shank Length Black Oxide

Part Number: VIK15620
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1136889
$110.86

Description

VIKING 15620 1” HSS DRILL TAPER SHANK LENGTH BLACK OXIDE Steel Black oxide is a conversion coating (similar to Alodine) that is used for steel and stainless steel. It is used mainly for appearance and for mild corrosion resistance. Black oxide impregnated with oil can provide the highest amount of corrosion resistance. Black oxide is formed in a process similar to anodizing, where the parts are dipped into various hot baths of chemicals that convert the surface of the material into magnetite, which creates the black color. Black oxide does not have a significant dimensional impact, therefore masking parts is not necessary. This process can take a longer time due to the manual labor required and the time it takes for the baths to come to the correct temperature.
Products specifications
Attribute name Attribute value
General Information
Shipping State Minnesota
Made In USA YES
Cutter Type HSS/Cobalt Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Type Taper Shank HSS Taper Shank
Drill Length Type Taper
Dimensions & Sizing
Overall Length 12.0000 304.80MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Flute Length 6.3750 161.93MM
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel
Cut Dia Min 1.0000 25.40MM
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Black Oxide
