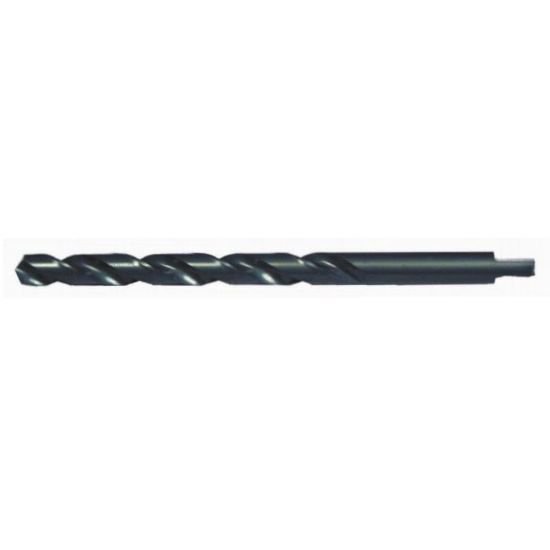

Picture of Viking 13400 5/32 HSS Drill Jobbers Length Black Oxide

Viking 13400 5/32 HSS Drill Jobbers Length Black Oxide

Part Number: VIK13400
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1232053
Vendor: Sussex Tool and Supply
$1.39
This product has a minimum quantity of 12

Description

VIKING 13400 5/32 HSS DRILL JOBBERS LENGTH BLACK OXIDE High Speed Steel Black oxide is a conversion coating (similar to Alodine) that is used for steel and stainless steel. It is used mainly for appearance and for mild corrosion resistance. Black oxide impregnated with oil can provide the highest amount of corrosion resistance. Black oxide is formed in a process similar to anodizing, where the parts are dipped into various hot baths of chemicals that convert the surface of the material into magnetite, which creates the black color. Black oxide does not have a significant dimensional impact, therefore masking parts is not necessary. This process can take a longer time due to the manual labor required and the time it takes for the baths to come to the correct temperature.
Products specifications
Attribute name Attribute value
General Information
Shipping State Minnesota
Made In USA YES
Cutter Type HSS/Cobalt Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Type Jobber HSS
Drill Length Type Jobber
Dimensions & Sizing
Overall Length 3.1250 79.38MM
Shank/Pilot Dia 0.1562 3.96MM - 5/32
Flutes/Inserts 2
Tool Dia 0.1563 3.97MM - 5/32
Flute Length 2.0000 50.80MM
Geometry & Angles
Included Angle 118°
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel
Cut Dia Min 0.1563 3.97MM - 5/32
Materials & Finish
Tool Material High Speed Steel
Cutting Edge Mat HSS
Coating Black Oxide
