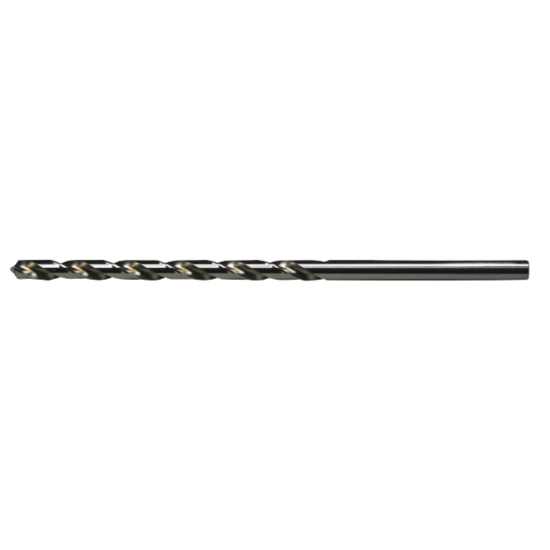

VIKING 10690 23/64 HSS Drill Taper Length Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VIKING
SKU: VIK10690
Delivery date: 3-5 days
$8.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Minnesota
Package Size 6
Made In USA Yes
Dimensional Specifications
Flute Length 4.2500 107.95MM
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Size 0.3594 9.13MM
Overall Len 6.7500 171.45MM
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Cylindrical
Included Angle 118°
Cut Rating <25HRC Steel, Grey Iron
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Cut Dia Min 0.3594 9.13MM - 23/64
Drill Length Type Taper
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
