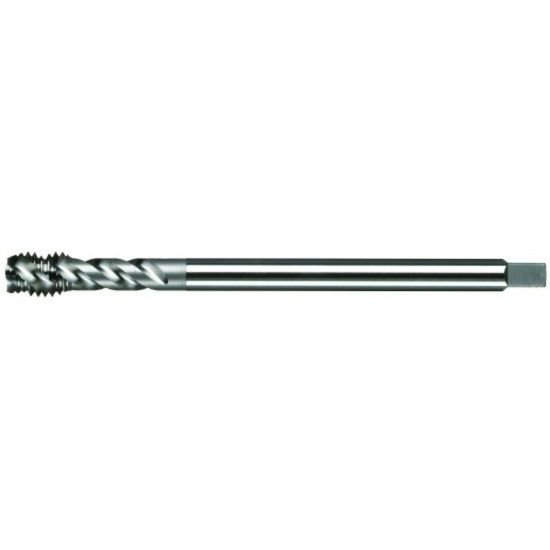

Picture of Vega 848002 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiCN Pulley Long

Vega 848002 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiCN Pulley Long

Part Number: VEG848002

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172542
Vendor: Sussex Tool and Supply
$123.90
VEGA No.2x56.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiCN H3/GH3 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Coating TICN
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.2
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1080
Tap Chamfer 2.5P-3.5P
