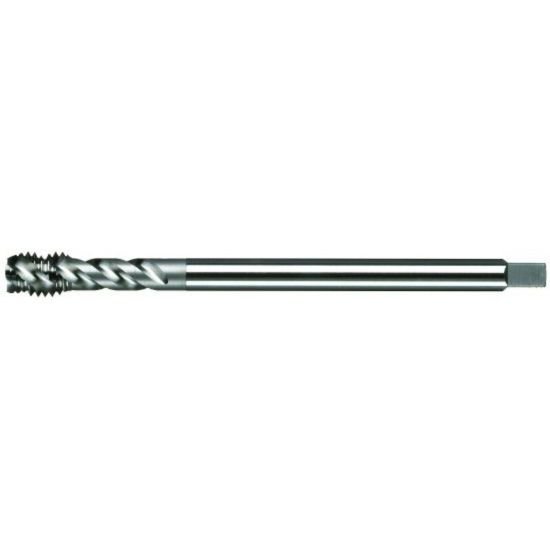

Picture of Vega 748742 M8-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiCN

Vega 748742 M8-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiCN

Part Number: VEG748742

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172522
Vendor: Sussex Tool and Supply
$123.90
VEGA M8x1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiCN D5 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Coating TICN
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Tap Chamfer 2.5P-3.5P
