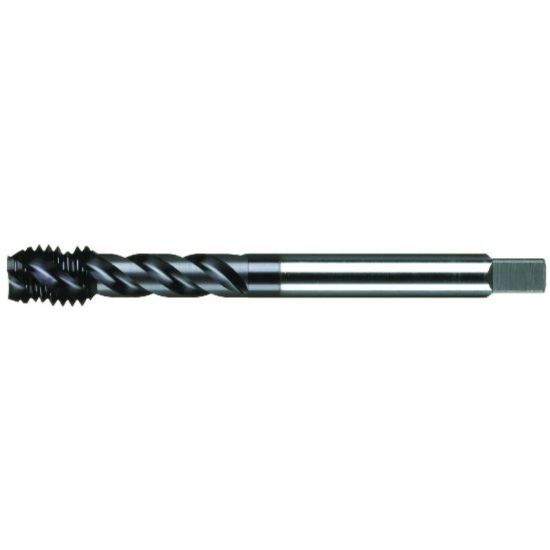

VEGA 34626 5/8-18.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG34626
Delivery date: 3-5 days
$79.11

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Tap Chamfer 1.5P-2.5P
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Length Type Standard
Thread Size 5/8"
Overall Len 3.8110 96.80MM
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Square 0.3570
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
