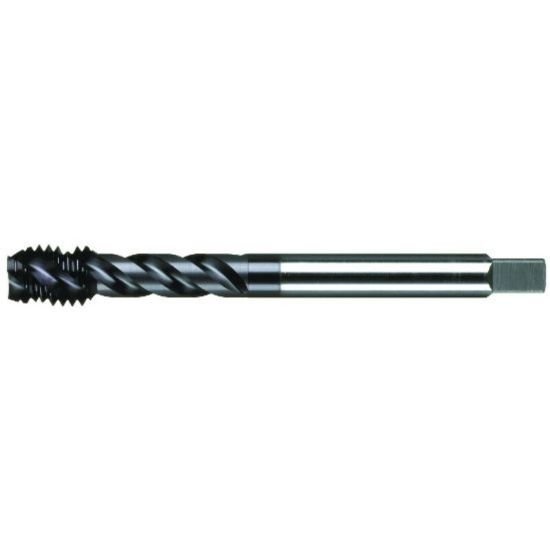

Picture of Vega 34620 7/16-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide

Vega 34620 7/16-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide

Part Number: VEG34620

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172503
Vendor: Sussex Tool and Supply
$40.20
VEGA 7/16"x20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Coating Steam Oxide
Overall Length 3.1600 80.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2390
Tap Chamfer 1.5P-2.5P
