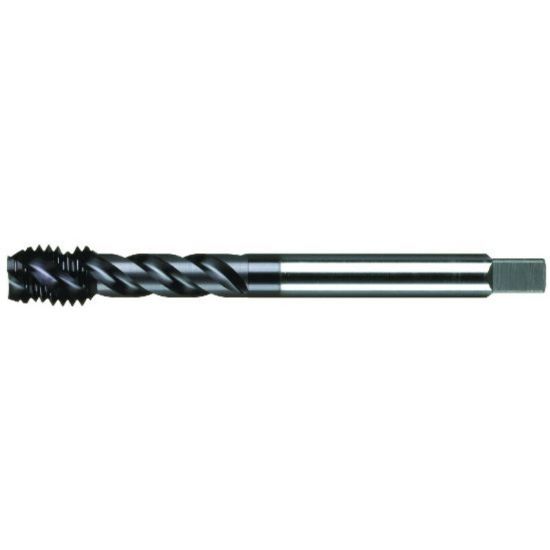

VEGA 34619 7/16-14.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG34619
Delivery date: 3-5 days
$34.32

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Thread Size 7/16"
Tap Square 0.2390
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Overall Len 3.1600 80.26MM
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Tap Chamfer 1.5P-2.5P
Flutes/Inserts 3
Thread Pitch 14.00TPI
Thread Limit H5/GH5
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
