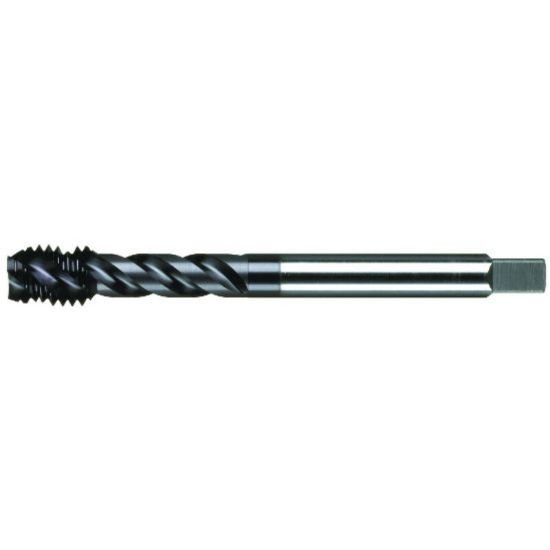

Picture of Vega 34613 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide

Vega 34613 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide

Part Number: VEG34613

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172496
Vendor: Sussex Tool and Supply
$25.90
VEGA 1/4"x20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-V Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Coating Steam Oxide
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1890
Tap Chamfer 1.5P-2.5P
