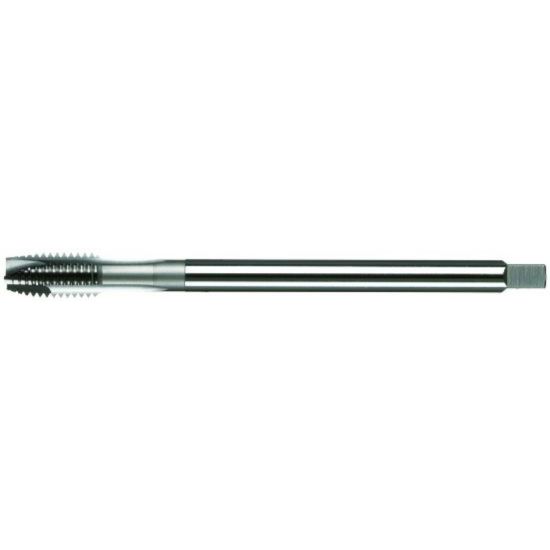

VEGA 32809 5/16-18.00TPI Over Sized Plug Plug 3.5P-5.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG32809
Delivery date: 3-5 days
$54.01

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Over Sized Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Steam Oxide
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Limit GH11 +0.005"
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1930
Tap Style Over Sized Plug
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Type NC/UNC
Thread Size 5/16"
Flute Direction R - Right
Length Type Standard
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
