  • VEGA 1687501 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Steam Oxide

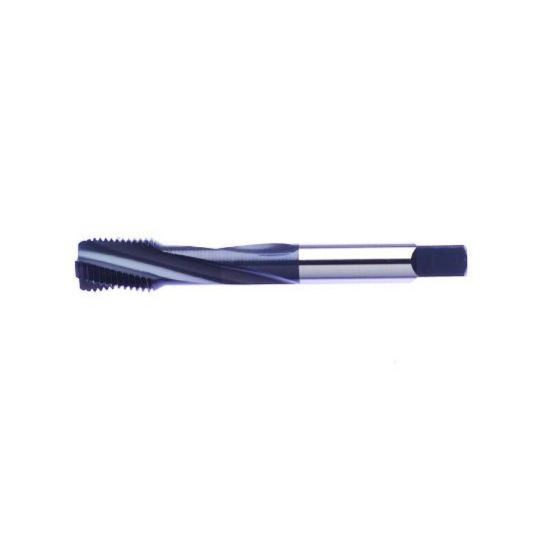

Picture of VEGA 1687501 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Steam Oxide

VEGA 1687501 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1687501
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Thread Pitch 40.00TPI
Cut Rating High Temp, Inconel, Titanium
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Square 0.1080
Tap Style Cut Spiral Flute
Machine Side Connection Type Tap Collet
Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
