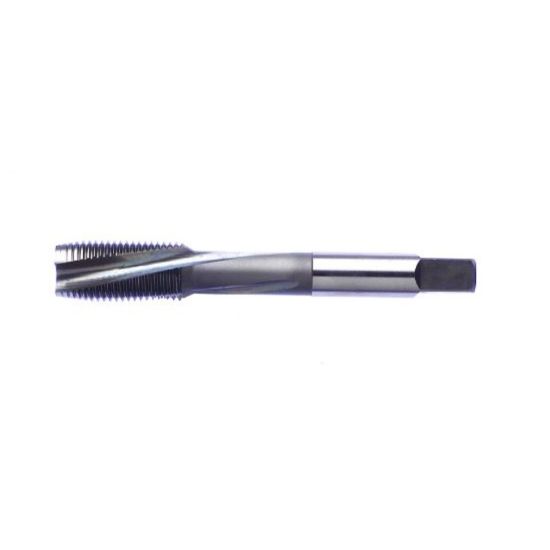

VEGA 1685623 No.2-56.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1685623
Delivery date: 3-5 days
$55.95

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Coating Nitride
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Thread Size No.2
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Tap Square 0.1080
Dimension Standard ANSI/ANSI
Thread Pitch 56.00TPI
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
