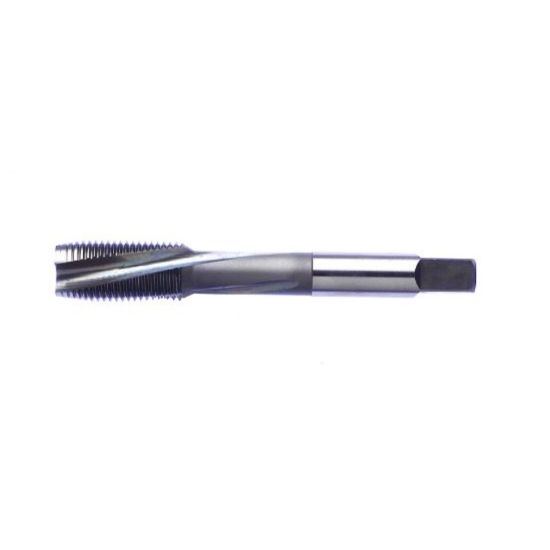

VEGA 1685615 5/16-18.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1685615
Delivery date: 3-5 days
$35.91

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Coating Nitride
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Style Cut Spiral Point
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Cut Rating High Temp, Inconel, Titanium
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Pitch 18.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
