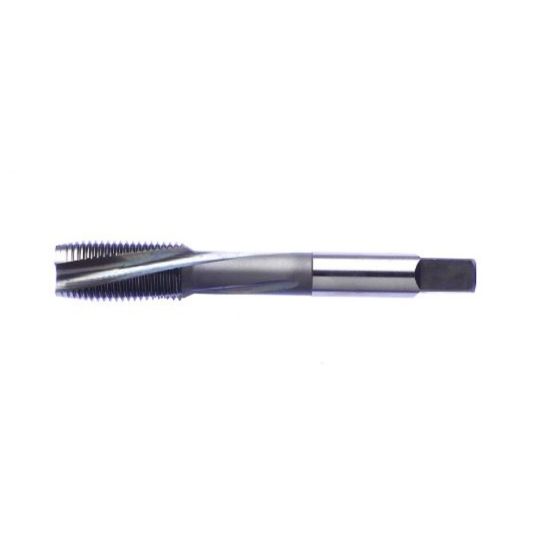

VEGA 1685614 1/4-28.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1685614
Delivery date: 3-5 days
$32.73

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.2550 6.48MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Style Cut Spiral Point
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1890
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Size 1/4"
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
