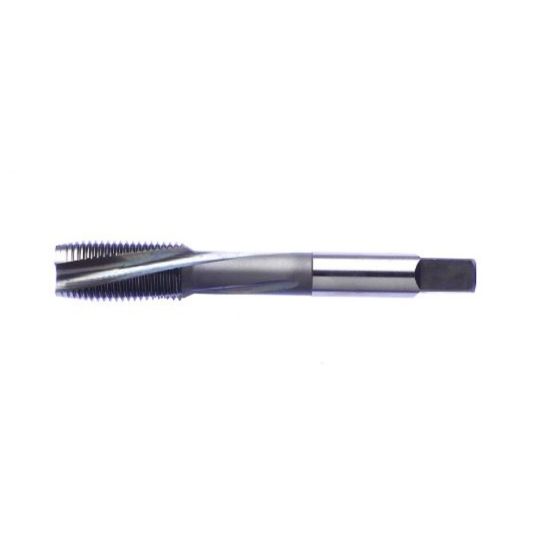

VEGA 1685610 No.10-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1685610
Delivery date: 3-5 days
$29.67

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating Nitride
Made In USA No
Shipping State Illinois
Dimensional Specifications
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size No.10
Flutes/Inserts 3
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tool Material Steel
Overall Len 2.3740 60.30MM
Flute Direction R - Right
Length Type Standard
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
