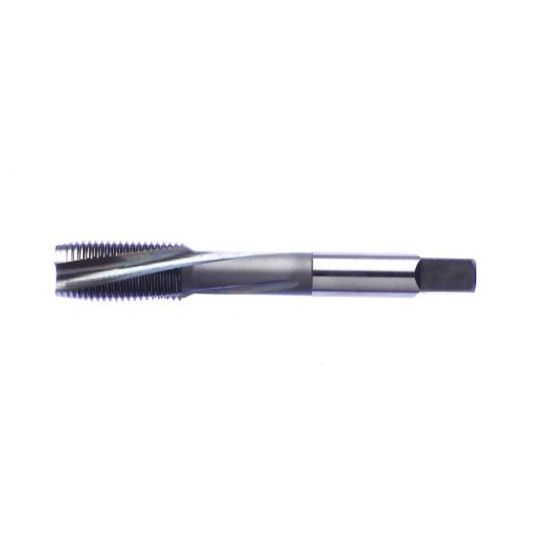

VEGA 1685605 No.6-32.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1685605
Delivery date: 3-5 days
$29.67

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Square 0.1080
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
