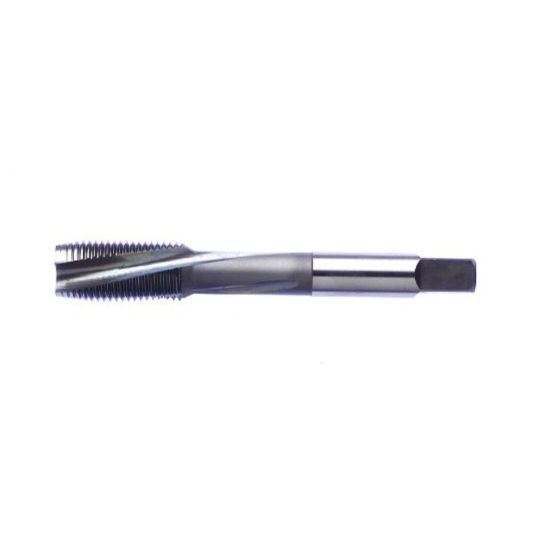

Vega 1685601 No.4-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride
Vega 1685601 No.4-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride
Part Number: VEG1685601
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
VEGA
SKU:
1172937
Vendor:
Sussex Tool and Supply
$44.00
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
VEGA No.4x40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-PM Nitride H3/GH3 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
ILLINOIS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE-PM
Machine Side Connection Type
Tap Collet
Cut Rating
High Temp, Inconel, Titanium
Coating
Nitride
Overall Length
1.8750 47.63MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.1410 3.58MM
Flutes/Inserts
2
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
40.00TPI
Thread Type
NC/UNC
Flute Direction
RIGHT
Thread Size
No.4
Thread Limit
H3/GH3
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
ANSI/ANSI
Tap Drill Range
0.0860 2.18MM - 0.0927 2.35MM
Tap Square
0.1080
Tap Chamfer
3.5P-5.0P
